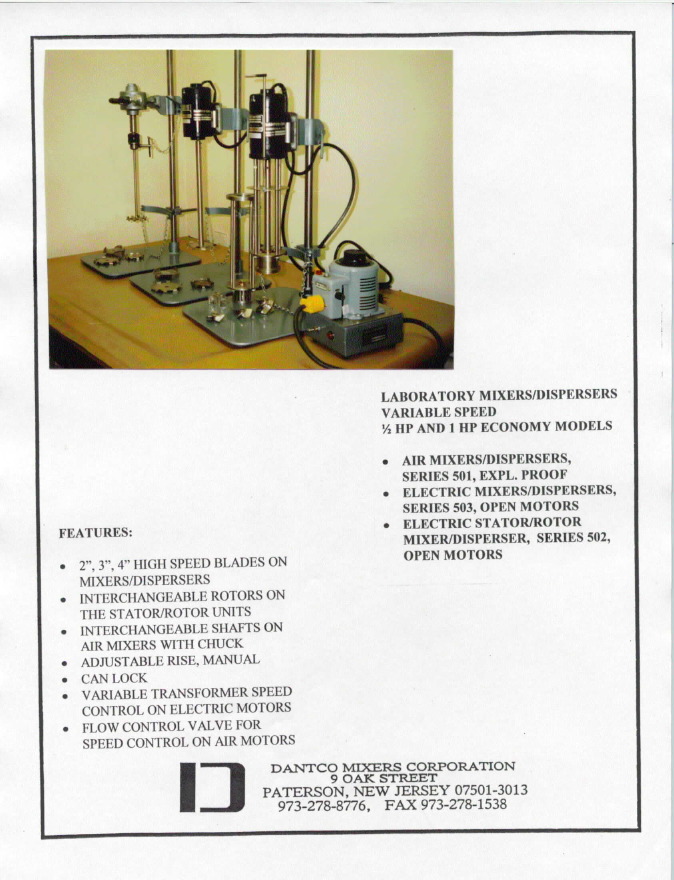

Lab Mixers/Dispersers
Variable Speed 1/2 and 1 HP Economy Models
| Series |
Description |
| 501 |
Air mixer/disperser, explosion proof |
| 502 |
Electric stator/rotor, open DC motor |
| 503 |
Electric mixer/disperser, open AC motor |
| 503B |
Elecric mixer/disperser, open AC motor, digital tach |
| 5043 |
Electric homogenizer, open AC motor |
Features:
- 2", 3", 4" high speed blades on mixers/dispersers
- Interchangeable rotors on stator/rotor units
- Interchangeable shafts on air mixers with chuck
- Adjustable rise, manual
- Can lock
- Variable transformer speed control on electric motors
- Flow control valve for speed control on air motors
- SS304 wetted parts (other types of materials available)
|
 |

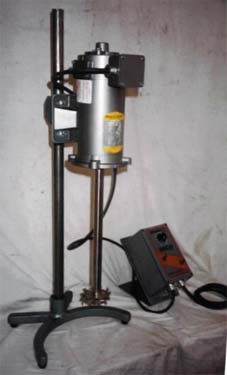

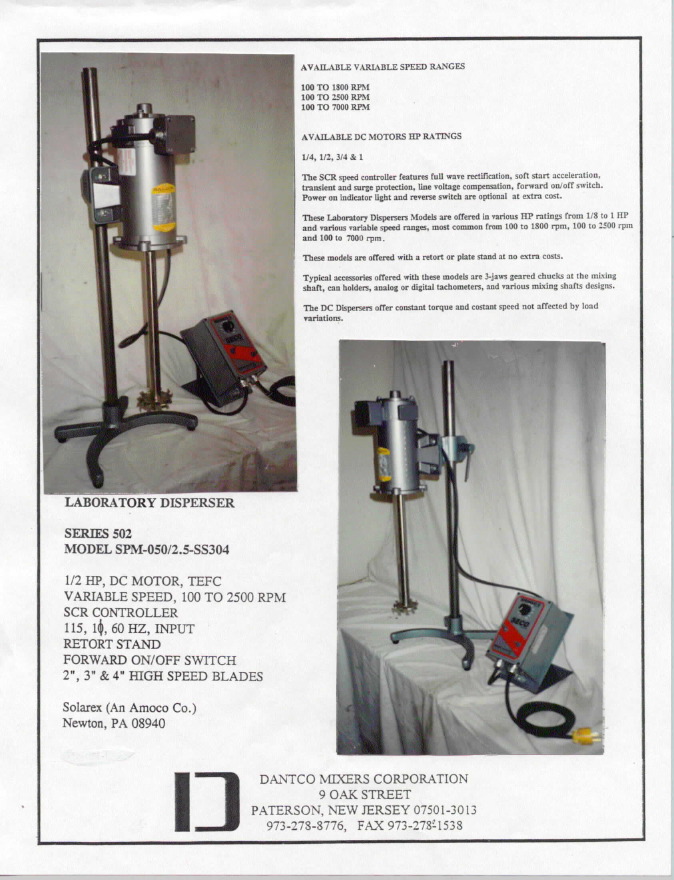

Series 502, Model
SPM-050-PC
DC Motor Mixer/Disperser
[Prices]
- Variable Speed
- Heavy Duty
- Standard Torque
Standard Features
- 1/2 HP, DC Motor, TEFC
- 100 To 2500 RPM, Speed Range
- SCR Controller
- 115V, 1-Phase, 60 Hz Input
- 3/4" Dia, 10" Long Mixing Shaft SS304
- 3" HSF High Shear Blade
- Lift On 1" Dia. Rod, Adjustable
- Retor Stand, Carbon Steel
- Forward On/Off Switch
- 2", 3" & 4" High Speed Blades
|
 |
Series 502B, Model SPM-100-1.7-SS304
DC Motor Mixer/Disperser
Standard Features
- 1 HP motor, TEFC
- In-Power:
10A, 110V, 60 Hz
- Power Cord, 6 foot
- On/off, run/jug,
speed pot
- Mixing speed range: 100 to 1750 rpm
- Blade:
4” HSF style
- Chuck, 3⁄4”
- Can Lock
- Plate
Stand, Retort Bar (optional)
- Suitable for bench operation
These units are available in post mounted configuration and
sizes up to 5 HP (non explosion proof). |
 |

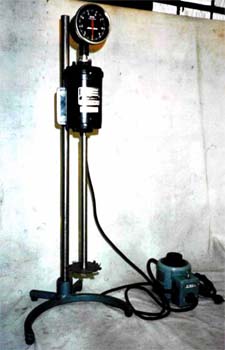

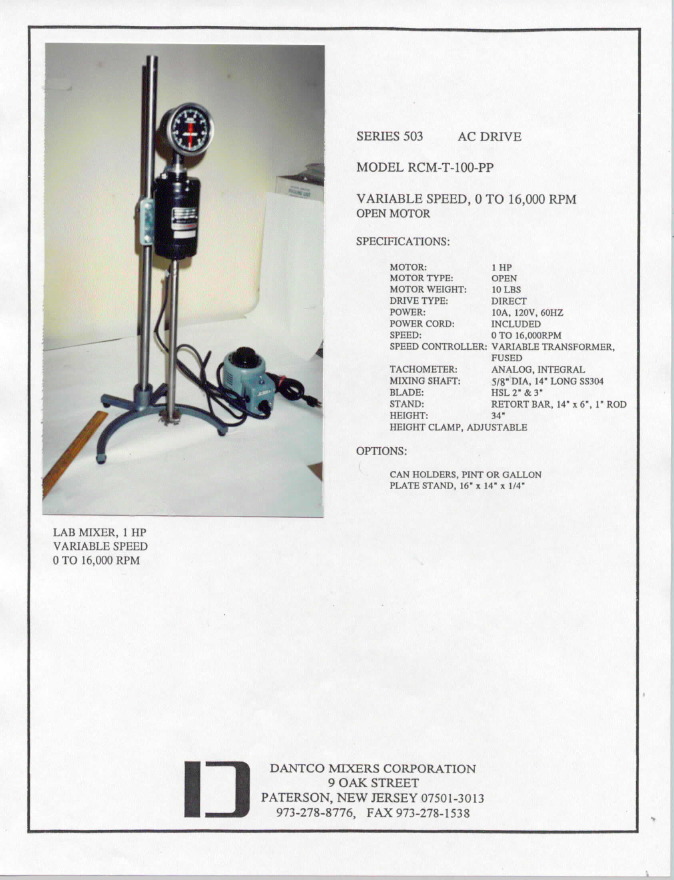

Series 503,
Model RCM-T-100-P
AC Motor Mixer/Disperser
[Prices]
- Variable Speed
- Heavy Duty
- Standard Torque
- Integral Analog Tachometer
Standard Features
- 1 Hp, AC Open Motor
- 0 To 16,000 RPM, Speed Range (Max)
- Variable Transformer Controller
- 115V, 1-Phase, 60 Hz Input, 10A, Power Cord
- 3/4" Dia, 10" Long Mixing Shaft SS304
- 3" HSF High Shear Blade
- Lift On 1" Dia. Rod, Adjustable
- Retor Stand, Carbon Steel
- Forward On/Off Switch
- 1", 2", 3" & 4" High Speed Blades, HSF or HSG Style
|
 |

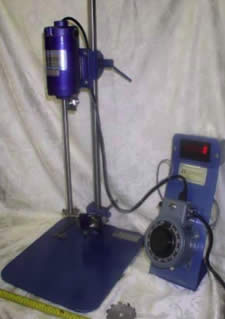

| Series 503B, Model RCM-100-DTACH-SS
AC Motor Disperser
Standard Features
- 1 HP motor, open
- In-Power,
10A, 110V, 60 Hz
- Power cord, 6 foot
- Digital tachometer & sensor
- Fused
Variable Transformer
- On/off, speed control knob
- Mixing
shaft speed: 0 to 16,000 rpm, no load
- Mixing shaft, 5/8” x
12”
- Blade: 1", 2” & 3” HSF style
- Can
Lock
- Plate Stand, Retort Bar (optional)
- Suitable
for bench top operation
|
 |
Series 503B,
Model RCM-TD-100-PC
AC Motor Mixer/Disperser with Digital Tachometer
- Variable Speed
- Heavy Duty
- Standard Torque
- Integral Digital Tachometer
Standard Features
- 1 HP, AC Open Motor
- 0 to 16,000 rpm, no load
- Variable transformer controller
- 115V, 1-phase, 60 Hz input, 10A, power cord
- 5/8” dia., 12” long, SS304 mixing shaft
- 2”, 3” & 4” high shear blades
- Lift on 1” dia rod, adjustable
- Plate stand, retort stand optional, carbon steel
- Forward On/Off switch
|
 |
Series 5043,
Model DMV-R-100-PC
AC Motor Homogenizer
[Prices]
- Variable Speed
- Heavy Duty
- Standard Torque
Standard Features
- 1 HP, AC Open Motor
- 0 To 16,000 RPM, Speed Range (Max)
- Variable Transformer Controller
- 115V, 1-Phase, 60 Hz Input, 10A, Power Cord
- 3/4" Dia, 10" Long Mixing Shaft SS304
- 3" HSF High Shear Blade
- Lift On 1" Dia. Rod, Adjustable
- Plate Stand, Carbon Steel
- Forward/Reversible On/Off Switch
- Interchangeable Heads (Stator/Rotor)
- Reversible Flow Modes (Vortex /Umbrella)
|
 |
|
