Custom Controls and Process Automation

Standard or Explosion Proof

From simple electro-mechanical controls to advanced PC supported control systems (example) using PLC, CPU, HMI (touch panels), Dantco can tailor a control or process automation package to meet all of your mixing process requirements.

Automation of controls & data acquisition of mixing systems
PLC, CPU, HMI
AC Drives and Ethernet Interface
Flow, weight, temperature, pressure, liquid level sensors, monitors and transmitters
Timers with start switch and auto shut off
Dispersers/mixers/agitators electronic motor controls with tachometer, ammeter displays
Explosion proof (NEMA 7 & 9) and non-explosion proof (NEMA 1, 4, 12) enclosures
Electric, pneumatic, and hydraulic controls and actuators
Cabling, thermocouples, wiring

NEMA Rating	Description	Explosion Proof
1	Normal enclosure	No
4	Water, dust tight	No
12	Drip tight, industrial	No
7 & 9	Hazardous locations	Yes

Explosion proof enclosures are UL Listed.

Remote Control Box, Model RCB-VFIN4-010-100 Dust Tight, Industrial, NEMA 4 For Variable Frequency Drives Application 1 to 5 HP Inverter Duty Motors Features Integral VFI controller Dust tight enclosure The Remote Control Box is connected to the inverter duty motor. This box is mounted by the mixer/disperser and provides local display and controls of the motor’s parameters accessed by the shown keypad. Manufacturer manual for keypad is included.
Remote Control Box, Model RCB-VFI-N12-T Drip Tight, Industrial, NEMA 12 For Variable Frequency (Vector) Drives Features Digital Tachometer Digital Ammeter On/Off Switch Speed Pot (0 to 100%) Timer Pot (0 to 100 Min.) E-Stop Motor Vector Drive (not shown) Inverter Duty Motor (not shown) The Remote Control Box is connected to the inverter duty motor and the vector drive controller. This box is mounted by the mixer/disperser and provides local display and control of the motor’s parameters. The speed pot adjusts the speed of the motor (and mixing shaft) as easy as adjusting the volume of a radio. The timer pot when set at a chosen time provides an auto shut-off function. This is a fail safe (idiot proof) operating system located where it is needed without the necessity of reprogramming the vector drive controller. This system may be used on motors from 5 HP and up in a non explosion proof application. This system may be provided also in a NEMA 7 & 9 explosion proof, UL Label, enclosure for hazardous locations.
Remote Control Box, Model RCB-VFI-N7&9MAX NEMA 7 & 9 Explosion Proof Enclosure (UL Listed) For Variable Frequency Drives Features Digital Tachometer Digital Ammeter On/Off Switch Speed Pot (0 to 100%) Timer Pot (0 to 100 Min.) E-Stop Motor Vector Drive Motor Starter The Remote Control Box is connected to the inverter duty motor. This box is mounted by the mixer and provides local display and control of the motor’s parameters. The timer pot when set at a chosen time provides an auto shut-off function. This is a fail safe (idiot proof) operating system located where it is needed without the necessity of reprogramming the vector drive controller. This unit may be provided also in a NEMA 12 non-explosion proof enclosure for non hazardous locations.
Remote Control Box, Model RCB-VD-N7&9 NEMA 7 & 9 Explosion Proof Enclosure (UL Listed) For Variable Frequency Drives Features Digital Tachometer Digital Ammeter On/Off Switch Speed Pot E-Stop The Control Box is connected between the vector motor drive (controller) and the mixer’s electrical motor. This box is mounted by the mixer/disperser and provides local display and control of the motor’s parameters. This is a fail safe (idiot proof) operating system located where it is needed without the necessity of re-programming the vector drive controller. This unit may be provided also in a NEMA 12 non-explosion proof enclosure for non explosive atmosphere.
Motor Control Box, Model DCB-N12-2/3HP 2 Motor Starters Application Motor controls for 2 HP and 3 HP double shaft mixer/disperser system Features ON/Off Switch for 2 HP motor ON/Off Switch for 3 HP motor E-Stop Lockable rotary switch Motor Starters with current limiters Drip-tight enclosure The Control Box is located by the mixer/disperser and it is wired to the motors and the site main power interrupts. The motor starters and the input current limiters provide a fail safe operating system. This unit may be provided also in a NEMA 7 & 9 explosion proof enclosure for hazardous locations.

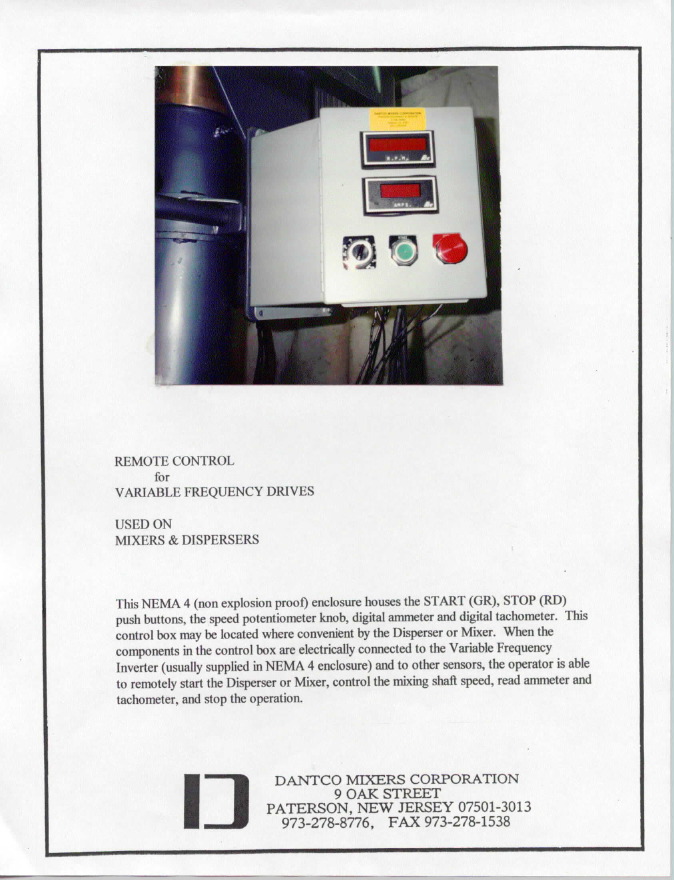

Remote Control Box, Model RCVFIN4 NEMA 4, Variable Speed For Variable Frequency Drives Application Mixers and Dispersers Features Digital Tachometer Digital Ammeter On/Off Switch Stop/Run Switch Speed Pot

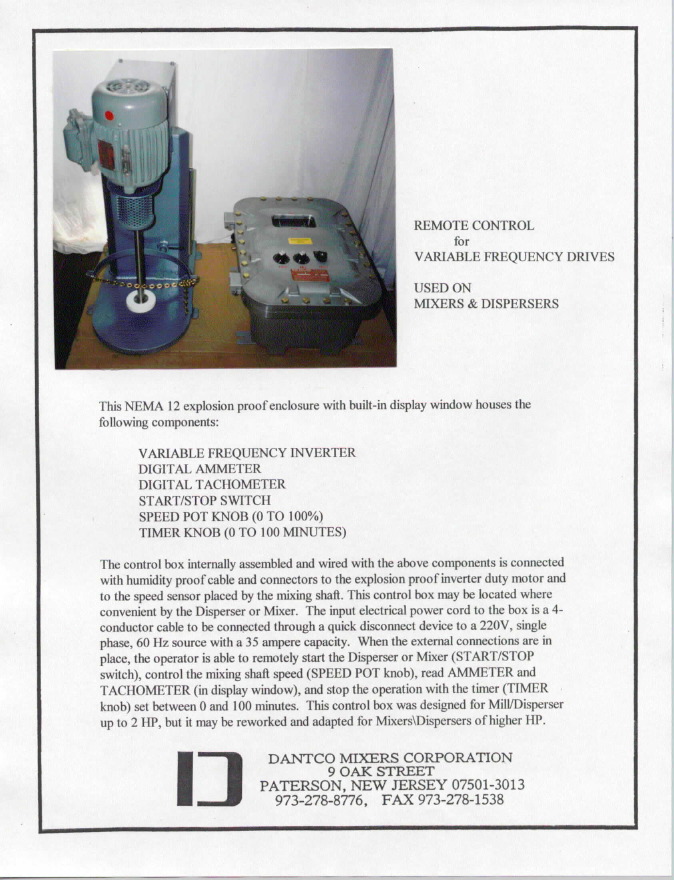

Remote Speed Control, Model RCVFIN7/9 NEMA 7 and 9 Explosion Proof Enclosure (UL Listed) For Variable Frequency Drives Application Mixers and Dispersers Features Display window Variable frequency inverter Digital ammeter Digital tachometer Start/stop switch Speed pot knob (0 to 100%) 0 to 100 minute timer

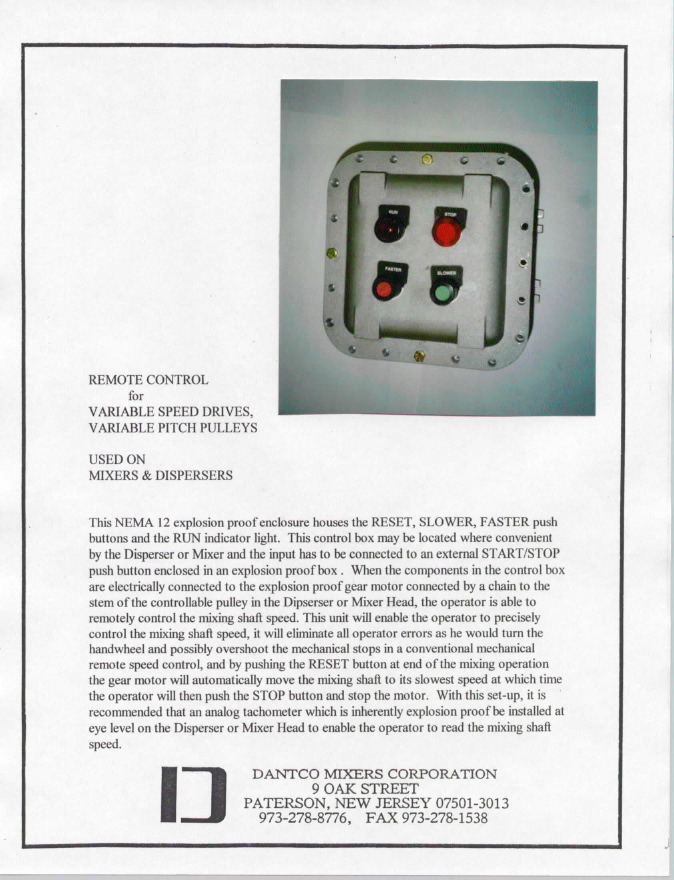

Remote Control, Model RCVSDN7/9 NEMA 7 and 9 Explosion Proof Enclosure (UL Listed) For Variable Frequency Drives Application Mixers and Dispersers

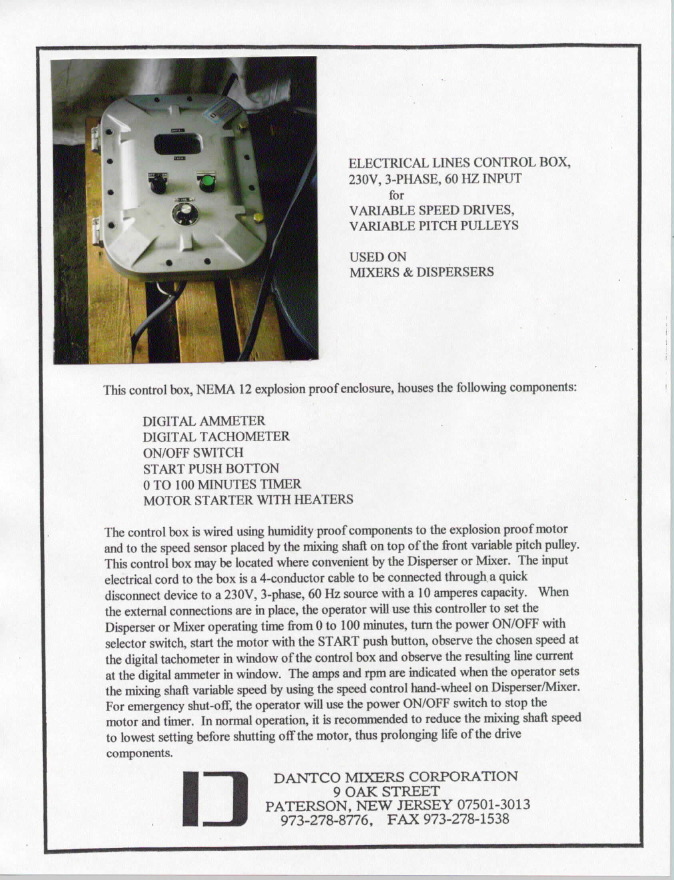

Electrical Line Motor Control, Model RCELCVSD7/9 NEMA 7 and 9 Explosion Proof Enclosure (UL Listed) 230V, 3-phase, 60 Hz input For variable speed drives (variable pitch pulleys) For TEFC/EX motors up to 5 HP Used on mixers and dispersers Features Digital ammeter Digital tachometer On/off switch Start push button 0 to 100 minute timer Motor starter with heaters
Remote Control Box, Model RCB-020-100 NEMA 12, Variable Speed Application 1 to 5 HP inverter duty motors Features Integral VFI controller On/off switch Stop/run switch Speed pot Lockable rotary switch Driptight enclosure
Remote Control Box, Model RCB-VD10HP-N7&9MAX Explosion Proof, NEMA 7&9 For Vector Drives, 10 HP Standard Features Digital Tachometer Digital Ammeter Stop/Run Switch Speed Pot (0 to 100%) E-Stop Indicator lamps, red (power on), green (run on), red (E-stop on) Motor Vector Drive, 10 HP, 3-phase, 50Hz, 400V, NEMA 1 Spare ports, front & side, for expansion UL Label enclosure ATEX Certified (European requirement) enclosure The remote control box is connected to the inverter duty motor. This box is mounted by the motor assembly and provides local display and control of motor’s parameters. This is a fail safe (idiot proof) operating system located where it is needed without the necessity of re-programming the vector drive controller. This control system is applicable to any assembly that requires a variable speed drive using electrical motors. It offers repeatability, visibility and reliability.
Remote Control Box, Model RCB-VD2HP-N7&9MAX Explosion Proof, NEMA 7&9 For Vector Drives Standard Features Digital Tachometer Digital Ammeter Reset/Run Switch Speed Pot (0 to 100%) Timer Pot (0 to 100 min) E-Stop Motor Vector Drive, 2 HP, 3-phase, 230V or 460V UL Label enclosure The remote control box is connected to the inverter duty motor. This box is mounted by the mixer and provides local display and control of motor’s parameters. The timer pot when set at a chosen time provides an auto shutoff function. This is a fail safe (idiot proof) operating system located where it is needed without the necessity of re-programming the vector drive controller. This control system is applicable to any assembly that requires a variable speed drive using electrical motors. It offers repeatability, visibility and reliability.
Remote Control Box & Vector Drive Controller Model RCB-VFI-N12-T (control box) Model VDC-200-N1 (vector drive controller) The vector drive controller (on viewer’s right) and the remote control box (on viewer’s left) are used together, as a system, to control the speed of an inverter duty electric motor. The vector drive controller is in a NEMA 1 enclosure, while the remote control box (usually located next to the motor) is in a drip-tight, industrial enclosure, NEMA 12. This system may be used on motors from 5 HP and up in a non explosion proof application. Similar system is available for explosion proof, UL Label, application. See Model RCB-VFI-N7&9. The Remote Control Box is connected to the inverter duty motor and the Vector Drive Controller. This box is mounted by the mixer/disperser and provides local display and control of the motor’s parameters. The speed pot adjusts the speed of the motor as easy as adjusting the volume of a radio. The timer pot when set at a chosen time provides an auto shut-off function. This is a fail safe (idiot proof) operating system located where it is needed without the necessity of reprogramming the vector drive controller.

Example of Process Automation: Batch Controller for Mixing System

The PLC will control all logic and communicate speed and other information to the VFD Mixer Motor Drives to control and monitor the process. In addition, the PLC will monitor specified process variables such as tank level, product temperature and tank weight in to control the process. The PLC will use process information to determine when the mixing cycles are complete. The PLC will control product flow between mixers using pneumatic controls for pumps and valves.

The local HMI will allow an operator to select process recipes and monitor process variables and equipment status. The main screen will be programmed to depict the entire mixing process. An alarm log will be included to allow operators to monitor status and fault messages in one convenient place.

A desktop, office duty PC will be provided to allow personnel to view and control process data in the same manner as the local HMI. Data recording will be handled here so that batch data can be stored in Excel or another spreadsheet type program.
