Lab/Pilot Dispersers
Post Mounted, Variable Speed
Series 506 - Model DVF, Variable Frequency Inverter
Series 507 - Model DDC, Variable Speed, SCR Controller
Series 2001 - Model DVH, Standard Torque, Heavy Duty
Series 2002 - Models DRH &DRL, High
Torque, Heavy Duty |
 |

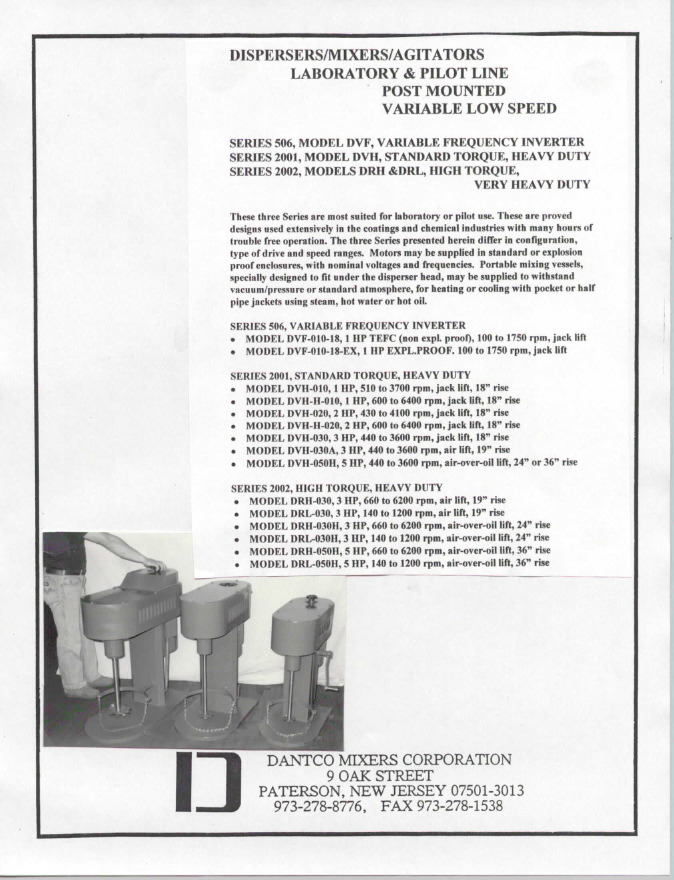

These three Series are most suited for laboratory or pilot use.
These are proven designs used extensively in the coatings and chemical industries
with many hours of trouble free operation. The three Series presented herein
differ in configuration, type of drive and speed ranges. Motors may
be supplied in standard or explosion proof enclosures, with nominal voltages
and frequencies.
Portable mixing vessels, specially designed to fit under the disperser head,
may be supplied to withstand vacuum/pressure or standard atmosphere, for heating
or cooling with pocket or half pipe jackets using steam, hot water or hot oil.
Series 506 Lab/Pilot Dispersers/Mills
[Prices]
Series 506
Lab/Pilot Disperser/Mill

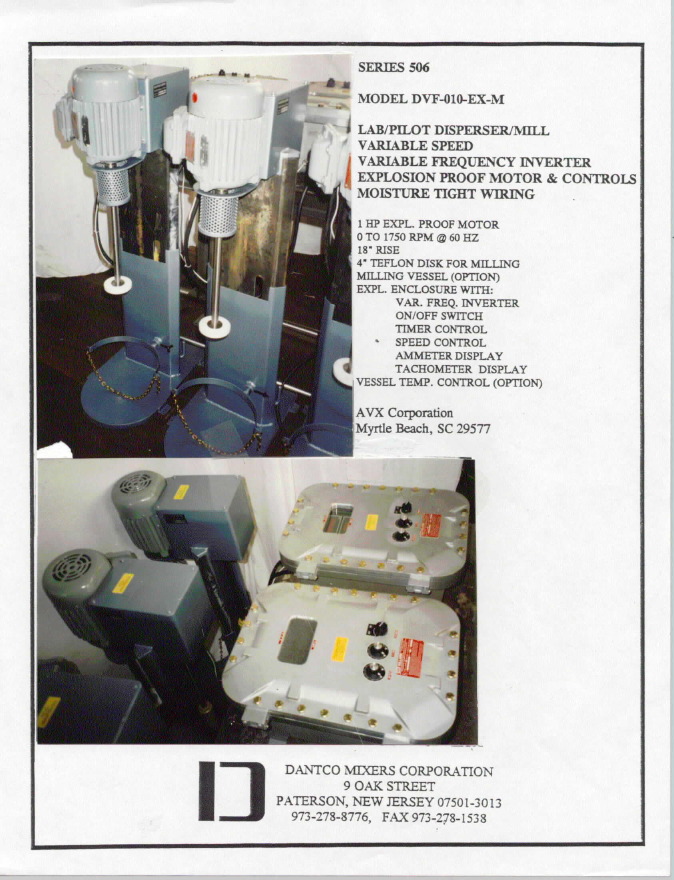

Model DVF-100-19

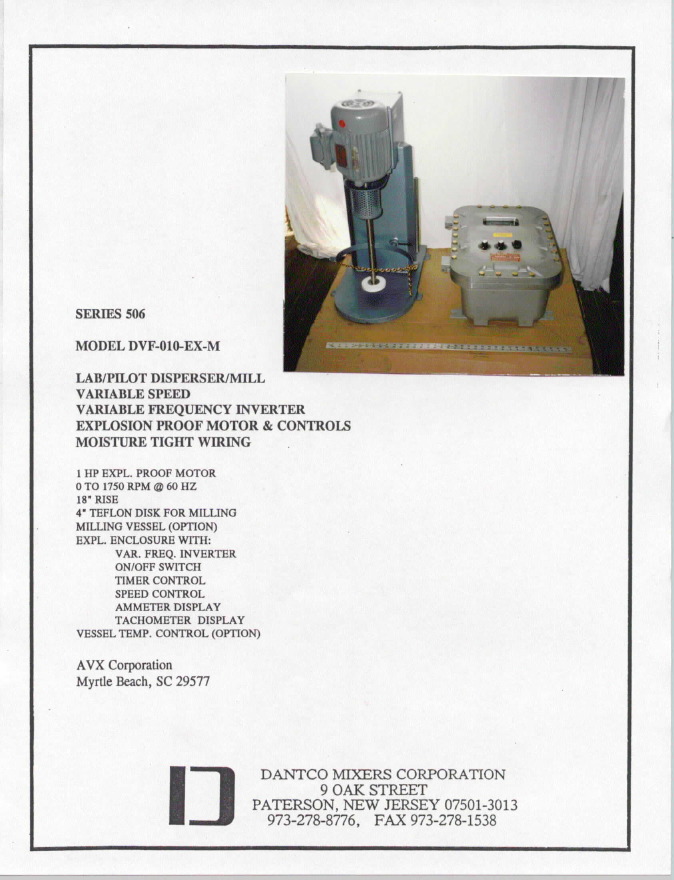

Model DVF-100-19-EX, Expl. Proof
- Variable Speed
- Heavy Duty
- Standard Torque
- Variable Frequency Inverter (VFI)
Standard Features
- 1 HP, AC Motor, TEFC
- 0 To 1750 RPM, Speed Range (1750 @ 60 Hz)
- VFI Controller & Keypad, NEMA 1 Encl.
- 230V, 1-Phase, 60 Hz Input, 10A, Power Cord
- 19" Rise, Hydraulic Jack
- 4" High Shear Blade Or Teflon Disk
- Wiring Moisture Tight Cable & Connectors
- 5 Gallon Pail, Sanitary, (Optional)
|
 |
Series 506
Lab/Pilot Disperser/Mill
Variable Speed, Vector Drive
DVF-010-18/8-TEFC/SS
- 1 HP, TEFC motor
- disk or high shear blade
- bow tie turbine
- manual jack lift, 18” rise
- can lock
- integral vector drive controller
- variable speed 200 to 1800 rpm
- dust tight enclosure
This mixer/disperser is suitable for bench top operation. The Remote
Control Box is connected to the inverter duty motor. This box is mounted
by the mixer/disperser and provides local display and controls of the
motor’s parameters accessed by the shown keypad. Knowledge of
the keypad functions is necessary and it can be acquired from the enclosed
manufacturer manual. |
 |
Series 507 Lab/Pilot Disperser
[Prices]
| Series 507B
Model DDC-100-18/6-PLIFT
Lab/Pilot Disperser
Variable High Speed DC Motor & SCR Controller
- 1 HP motor, TEFC
- In-Power:
10A, 110V, 60 Hz
- Digital Tachometer
- ON/OFF, RU/JUG,
Speed Pot
- Mixing shaft speed range: 100 to 1750 rpm
- Blade:
4” HSF style
- Pneumatic Lift & Controls, 18” rise,
6” throat
- Filter-Lubricator-Regulator
- Chuck,
3⁄4”
- Can Lock & Chain, adjustable
- Plate
Stand, Retort Bar (optional)
- Suitable for bench top operation
These units are available in post mounted configuration in sizes
up to 5HP. |
 |
Series 2001 Lab/Pilot Disperser
[Prices]
Series 2001
Lab/Pilot Disperser

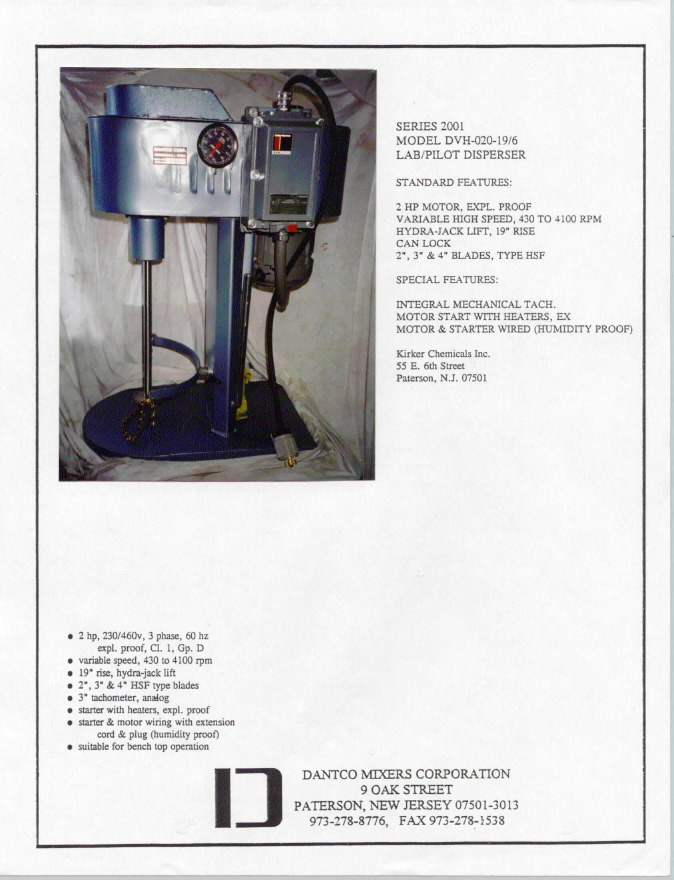

Model DVH-030-19/6-EX
- Variable Speed
- Heavy Duty
- Standard Torque
Standard Features
- 3 HP AC Motor, TEFC, Expl. Proof
- Various Speed Ranges
- Speed Control Knob, Top, Rear
- 230/460V, 3-Phase, 60 Hz Input
- 19" Rise, Hydraulic Jack
- 4" High Shear Blade, Type HSF
- Can Lock, Chain & Load Binder
Special Features, Explosion Proof
- Electrical Line Control Box With Timer
- On/Off Switch
- Start Button
- Ammeter & Tachometer
|
|
Typical Assembly For
Series 2001
Lab/Pilot Disperser, Variable Speed
Model DVH-020A-6/18EX
Standard features:
- 2 HP motor, explosion proof, 3/60/230/460V,
1750 rpm
- Variable high speed, 430 to 4100 rpm
- Speed control knob (top of motor pulley)
- Can lock, 1 to 5 gallon
- 1", 2", 3" & 4" blades, type HSF or HSG
Special features (included):
- Tachometer, analog (expl . proof)
- Ammeter, analog (expl. proof)
- Starter with heaters & ON/OFF lever,
expl. proof
- Air lift system with up/down control and
air filter/regulator/lubricator with air pressure gage
- Wired, humidity proof, with 6 ft. cord
|
 |
Series 2002 Lab/Pilot Disperser
[Prices]
Series 2002

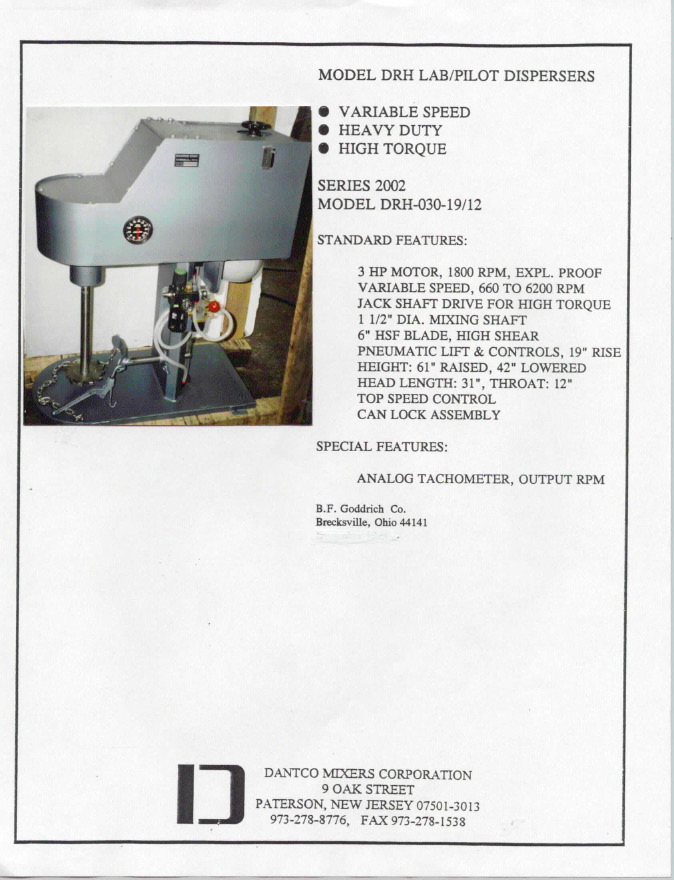

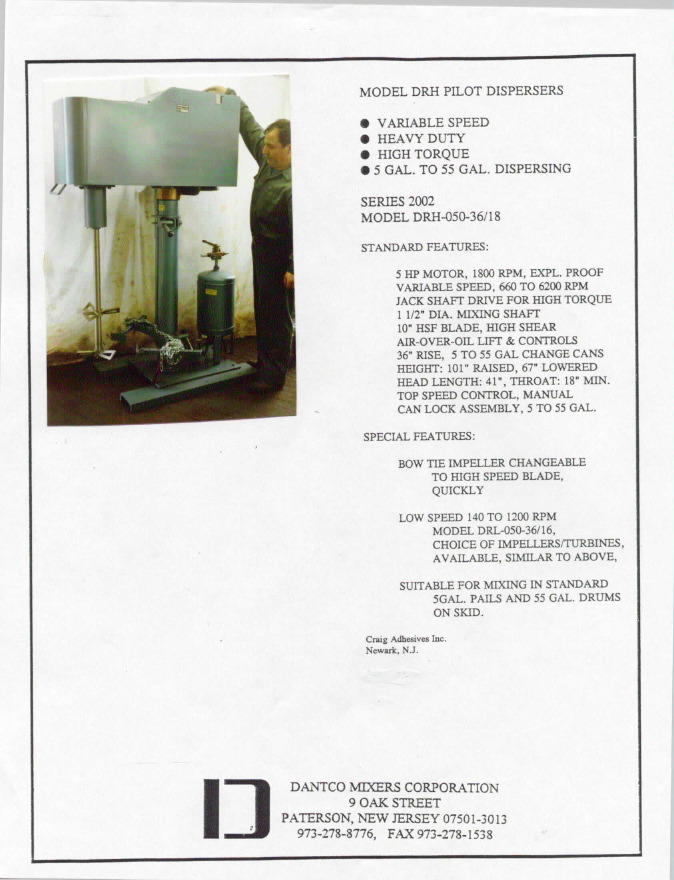

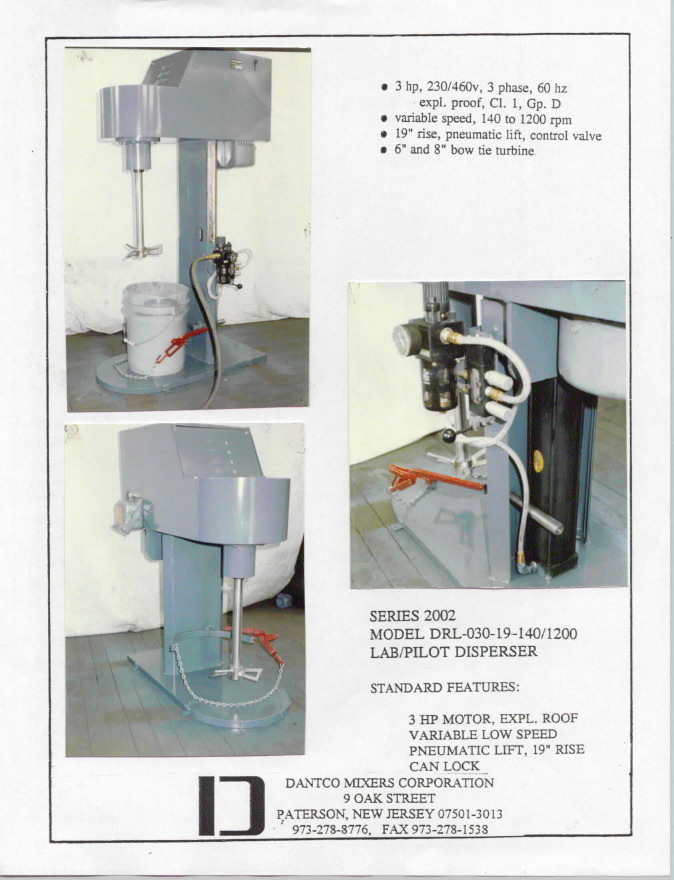

Model DRH-030-19/12-EX, Lab/Pilot Disperser
- Variable Speed
- Heavy Duty
- High Torque
- High Viscosity Applications
Standard Features
- 3 HP AC Motor, TEFC, Expl. Proof
- Various Speed Ranges
- Jack Shaft Drive For High Torque
- Speed Control Knob
- 230/460V, 3-Phase, 60 Hz Input
- 19" Rise, Pneumatic Lift & Controls, Side
- 4" High Shear Blade, Type HSF
- Can Lock, Chain & Load Binder
- Bench Top Or Floor Mounted
- Analog Tachometer (Model DRL)
|
 |
|
