Mixing Tanks and Reactors
We design and custom fabricate carbon steel, aluminum, stainless steel and
nickel alloy process equipment and offer all polishing and finishing options.

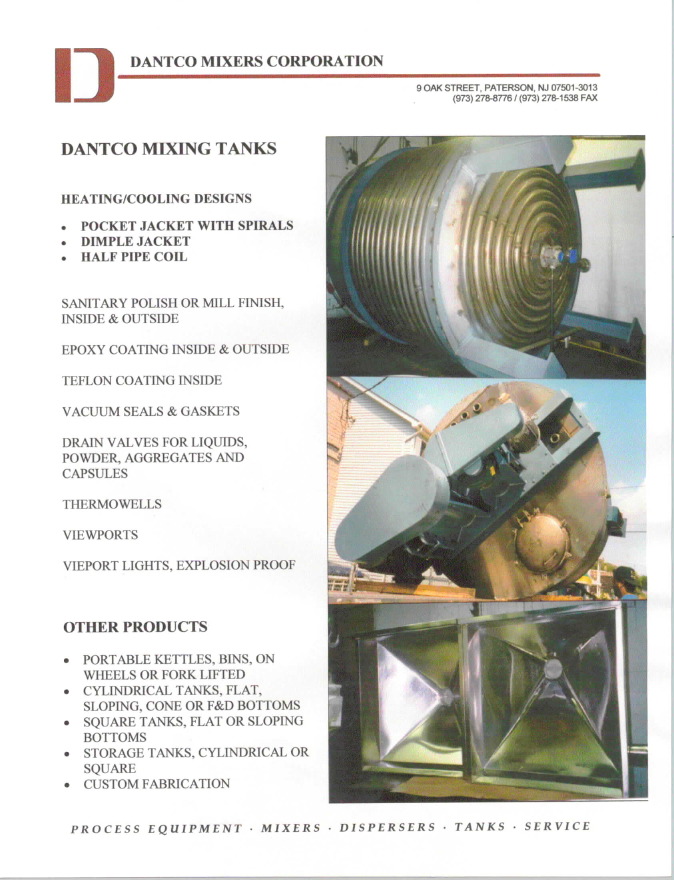

 Mixing
Tanks Overview
 Mixing
Tanks, Kettles, Bins

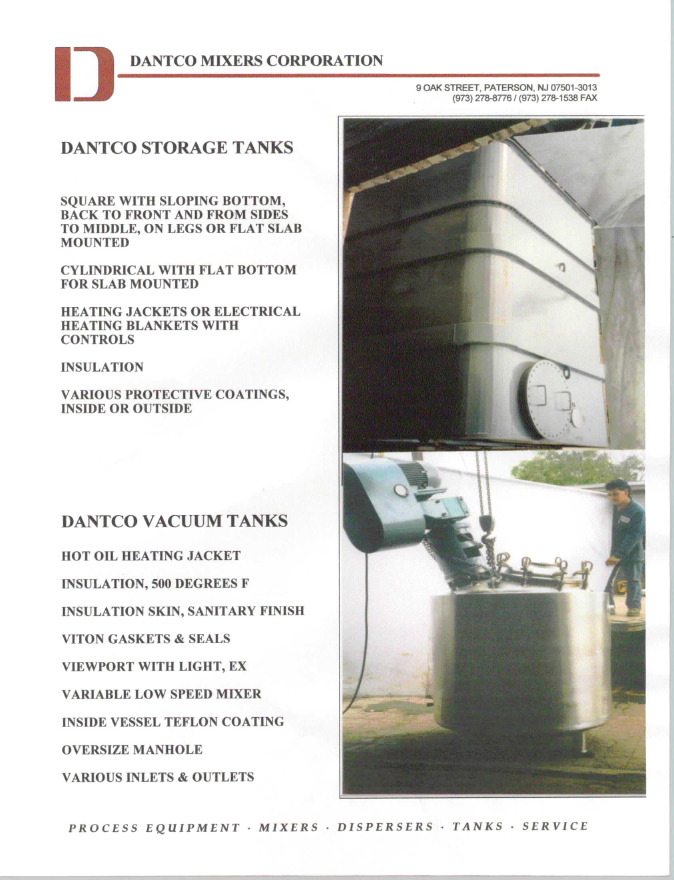

Storage
and Vacuum Tanks
| Model |
Description |
|
Product Brief |
| TFD-U |
Cylindrical, vertical, heating/cooling jacket |
|
Heating/Cooling
Option |
| TFD |
Cylindrical, vertical |
 |
Model
TFD-25-PT-SS (1) (2) |
| TSRC |
Square, round
corners, vertical |
|
Typical
Assembly |
Model TFD
Heating/Cooling
Option
Model
TFD-25-PT-SS (1) (2)
- Cylindrical, vertical
- Up to 10' diameter & 10,000 gallon
- Carbon steel or stainless steel
- Open top with cover, 1/3 hinged
- F&D bottom
- Structural steel legs with floor pads
- Inside welds ground smooth
- Leak tested before shipping
- Other bottoms available, i.e. flat, sloping, cone

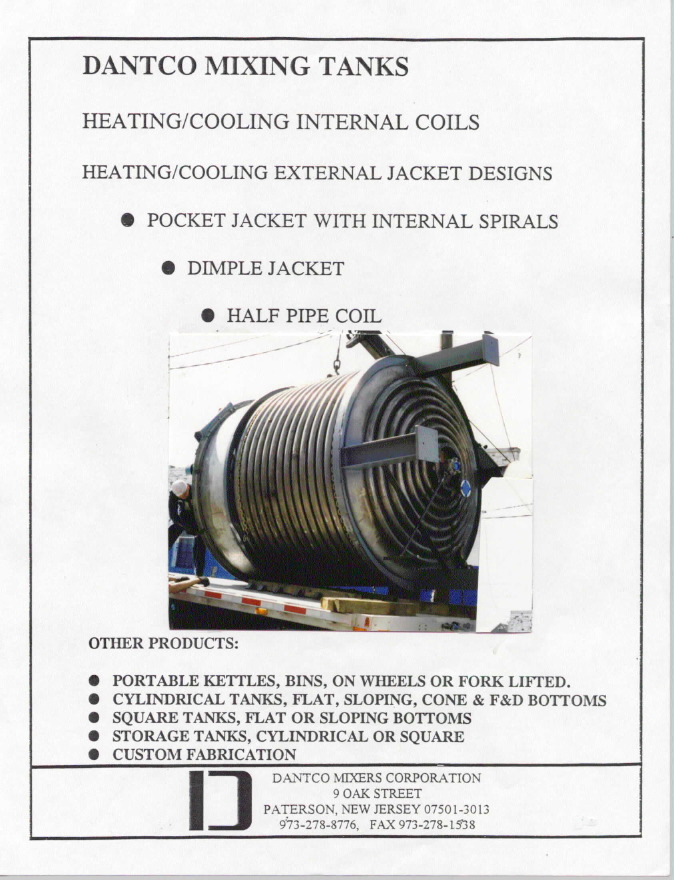

- Heating/cooling pocket or pipe jackets are optional
|
 |
Model TSRC
- Square, round corners, vertical
- Up to 10' square and 10,000 gallon
- Carbon steel or stainless steel
- Flat top with hinged covers & various
inlets
- Top bridge, structural steel, for mixer
mounting
- Angle ring 32" from top for mezzanine
mounting
- Channel braces for added strength
- Inside welds ground smooth
- Leak tested before shipping
|
 |

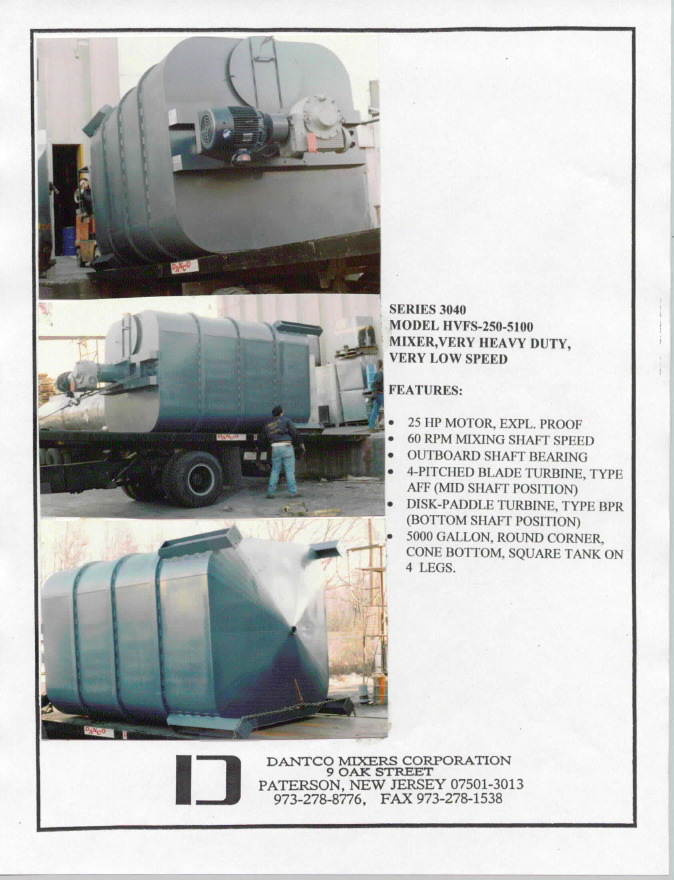

Model TSRC with Cone Bottom
Typical
Assembly with Slow Speed Mixer
- Other bottom designs available, i.e. flat bottom for slab mounting,
sloping bottom from back to front & from sides to center
- Slab mounted, platform mounted or on structural legs
|
 |
|
