High Speed Dispersers
Model DVH Dispersers
Variable Speed, Heavy Duty, Standard Output Torque
The DVH models are heavy duty, high speed Dispersers with standard output
torque using Speed Selector variable speed drive designed into a single belt
power train, resulting in maximum power delivery to the high speed blade.
All motors are NEMA standard or explosion proof with UL label.
Typical speed ranges at the mixing shaft:
| Series |
Model |
Speed Range (RPM) |
HP |
Application |
| 2001 |
DVH |
400-3600 |
1-5 |
Lab/Pilot |
| 2010 |
DVH |
600-3600 |
5-30 |
Production |
| 2010A |
DVH |
500-2800 |
40-60 |
Production |
| 2010B |
DVH |
1000-3000 |
75-100 |
Production |
| 2012 |
DVW |
|
|
|
Available accessories for these models:
- Can Lock, adjustable
- Tachometer, digital or analog
- Ammeter, digital or analog
- Front manual speed control
- Interval timer, 0 to 100 minutes
- Remote electrical speed controls (standard or explosion proof)
Typical Assembly
Series 2010 - Model
DVH-300-54/29-TEFC/SS
Standard features:
- 30 HP motor, 1750 RPM, TEFC, 3/60/230/460V
- Variable speed range, 600 to 2800 RPM
- 2 1/4" diameter mixing shaft
- 14" blade, style HSF
- 7' dia. ram, air-over-oil, 54" rise
- Height 140" raised, 86" lowered
- Side speed control
Special features:
- Can lock up to 400 gallon capacity
- Starter, NEMA 1
- On/off switch, NEMO 1
- Installation on disperser of starter, on/off switch and humidity
proof interconnecting wiring.
|
 |

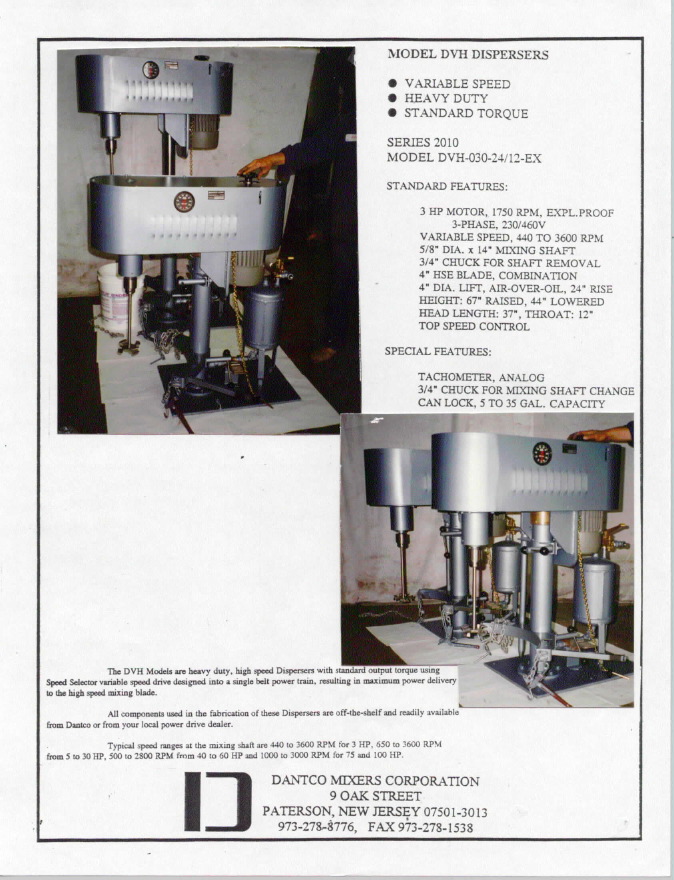

Typical Assembly
Series 2010 - Model
DVH-030-24/12-EX
Standard features:
- 3 HP motor
- Variable speed range, 400 to 3600 RPM
- 4" diameter lift, 24" rise
|
 |
|
