Systems for Lab Applications

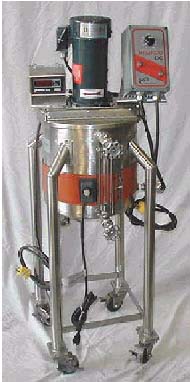

Tank/Mixer Assembly
Series 3003, Model DDC-05-100/1000-TEFC/SS
Portable Laboratory Model

Tank/Mixer for laboratory use where controls and displays are essential.

Specifications

• DC Motor, ½ HP, 1750 rpm, TEFC
• Variable Speed, 100 to 1000 rpm
• Vessel capacity, 5 gallon, 12" dia x 12" deep
• Electrical heating & controls, 800W
• OAH 36"
• Materials: SS316
• Input to SCR controller, heating & temperature display is 1/60/120V

• Turbine, high efficiency
• SCR variable speed controller
• Thermo probe
• Digital temperature display
• Flush bottom ball valve
• Liquid level gage
• Wheels with brake
• Hinged cover
• Humidity proof wiring
• Sanitary finish

Lab Dispersing and Blending System
Model LDB-100EX-1
Dual Lab Air Mixers with Reactor

The Lab Dispersing & Blending System consists of 3 major assemblies:

• Series 501, Model AM-150-P Lab Air Disperser, Variable High Speed
• Series 501A, Model AM-150A-P-20/200RPM, Lab Air Mixer/Agitator, Variable Low Speed
• Model TFDU-2G-75, Reactor with 75 psig heating/cooling jacket and split flat cover

This Lab Station is used to process products needing explosion proof capabilities. The product may be subjected to high shear action on the Series 501 Disperser. The product may also be subjected to a blending action under the Series 501A Mixer/Agitator. The reactor, cone bottom and flush mounted ball valve, may be used as the mixing vessel with the versatility of controlling the temperature of the product being processed. The high speed high shear blade may be substituted with a Teflon disk, thus using the Lab Station as a Lab Mill. Various accessories are available with this system beside the built in tachometers, 3-jaw chucks and the Filter Regulator Lubricator (FRL) shown in the picture. Thermal probe and temperature display, load cells or platform, sight gage, vacuum cover, view ports and view lamp may also be supplied on request.
