Mini Turbines and Mini Blades

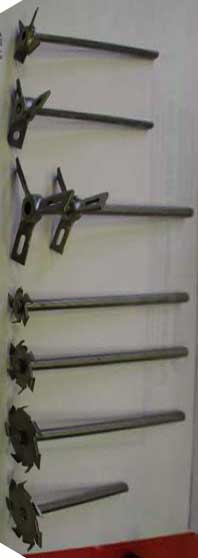

Mini Turbines & Mini Blades on 10” & 12” Shafts,
SS304
Axial flow turbine, 1.5” diameter, 4 blades, Type AFF-1.5
(1/4” dia.
10” long shaft)
Butterfly turbine, 3” diameter, 3 blades, Type DEF-3
(1/4” dia.
10” long shaft)
Bow Tie turbine, 3” diameter, 4” diameter, Type SBT-3
(3/8” dia. 12” long shaft)
High speed, high shear blade, 1” diameter, Type HSF-01-1/8B-SS
(3/8” dia. 12” long
shaft)
High speed, high shear blade, 1.5” diameter, Type HSF-015-1/8B-SS
(3/8” dia. 12”
long shaft)
High speed, high shear blade, 2” diameter, Type
HSF-02-1/8B-SS (3/8” dia. 12” long
shaft)
High speed, high shear blade, 3” diameter, with hub,
Type HSF-H-03-1/4B-SS (1/4”
dia. 10” long shaft, hub hidden on top of blade)
Finish, Standard:
Polish, 240 grits.
Also available: Radial flow, Type RFF. |
 |
Bung Opening Blade, Model BBO-04-SS
- 2-blade, hinged
- Bore with set screws
- SS304
- Sizes up to 10”
This blade slides through the bung hole of the drum (right) and opens
(left) while the mixing shaft is rotating, thus creating some shear and
mixing action or keeping the product in suspension. |
 |
|
