Dantco

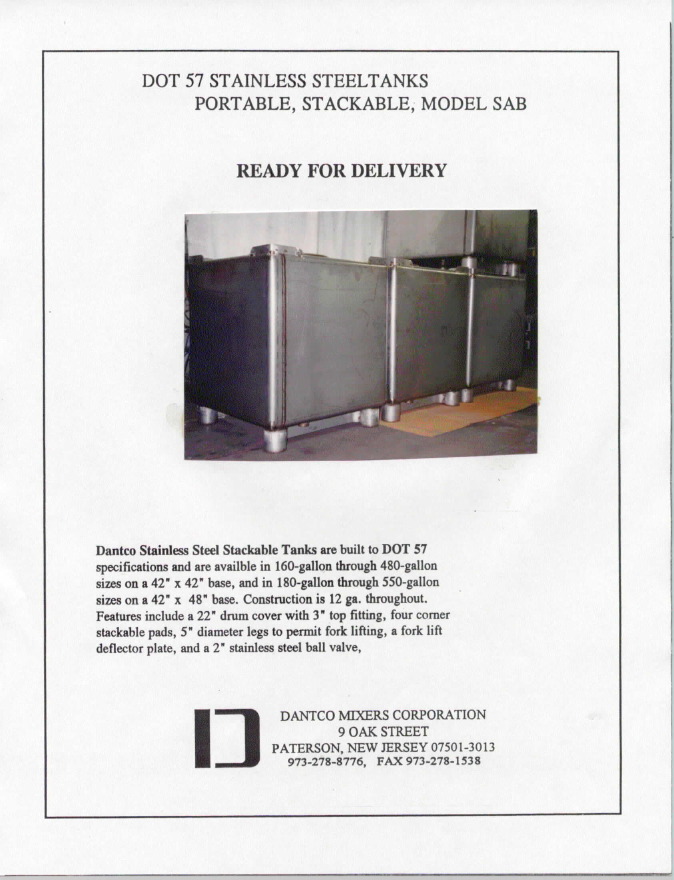

Stackable and Portable Bins - DOT 57

  • Built to DOT 57 specification
  • 160 to 480 gallon on 42" x 42" base
  • 180 to 550 gallon on 42" x 48" base
  • 22" diameter drum cover with fittings
  • 4 corner stackable pads
  • 6" off the floor to permit fork lifting
  • 2" drain ball valve & fittings
  • Epoxy coating for weather protection on carbon steel models
Options are heating/cooling inside coil, outside insulation, insulation skin, heating/cooling outside pocket jacket, inside/outside sanitary polish, air or electric mixers, fixed or portables.

Available in carbon steel, aluminum and stainless steel with any polishing and finishing options.

PDFModel SAB (1) (2)

2-way fork lift model with fork lift deflector plate. 4-way fork lift model with recessed 2" drain ball valve and fittings. Recess detail for the 4-way fork lift model showing ball valve in place.
